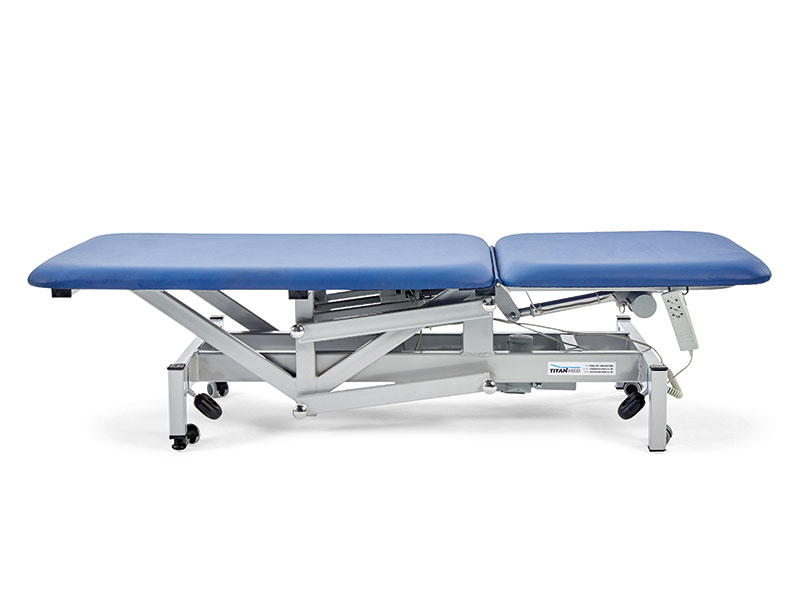

A very strong, robust and aesthetically pleasing treatment couch designed to meet the increasing need to cater for the heavier patient with electric height and backrest functions as standard. Our two section bariatric couch features 55mm retractable positioning casters with an adjustable self-levelling foot making them ideal for a wide range of healthcare environments and treatment procedures.

Standard Specification

  • Safe working load and lifting capacity of 350kg (55 stone)
  • Excellent height range from 43cm (17”) to 97cm (38”)
  • Electric height elevation
  • Antimicrobial contoured upholstery
  • Fully compliant and CE marked
  • 50mm high density flame-retardant foam
  • The power assisted head section incorporates anti-trap design
  • Hand switch fitted as standard
  • Hoist clearance along entire length of couch
  • Purpose made precision bearings on all pivot points

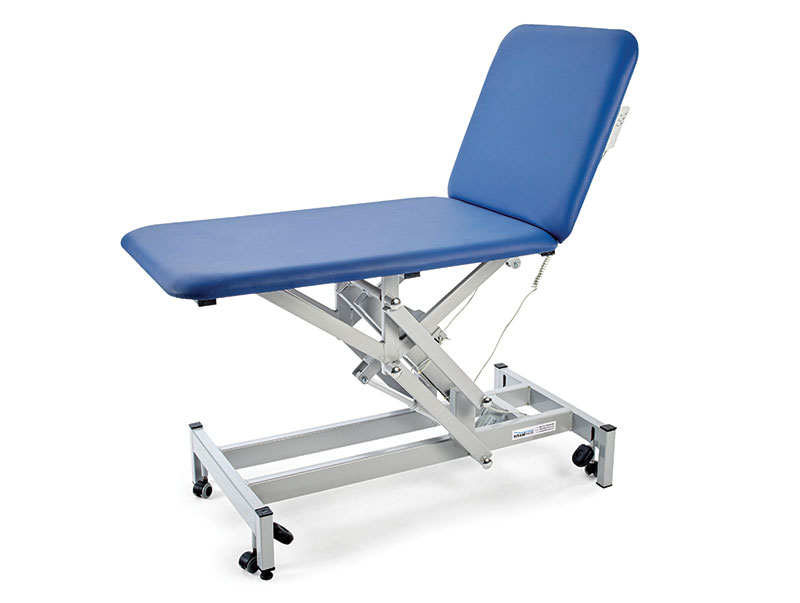

  • Motorised back rest from -25 to +85 degrees
TMB2 - Electric height elevation
  • Double foot switch operation
  • Paper towel holder
  • Phlebotomy arm
  • Breathing hole and plug
  • Cot sides (powder coated, chrome plated or padded)
  • Length: 190cm
  • Width: 76cm
  • Safe Load: 350kg
  • Height range: 43cm - 97cm
  • 3 year warranty on moving components
  • Lifetime warranty on frame
  • EEC classification - MDD93/42/EEC Annex IX Class 1
  • Electrical standard - IEC601 Part 1 + 60601. P (EN)
  • IP rating - IPx4
  • Vinyl flame retardant to CRIB5 (BS7176 inc. foam)
  • Foam to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB5)
