3 SECTION

BARIATRIC

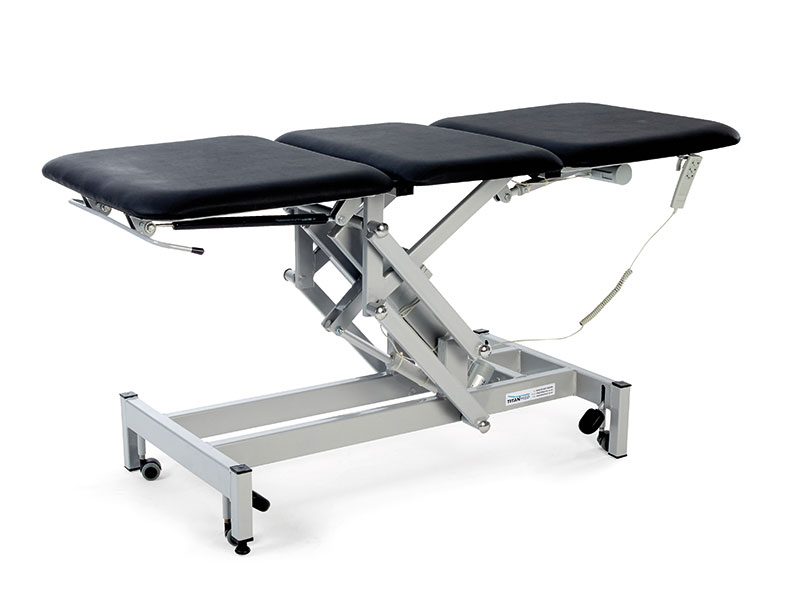

A very strong, robust and aesthetically pleasing treatment couch designed to meet the increasing need to cater for the heavier patient with electric height and backrest functions as standard. Our three section bariatric couch features 55mm retractable positioning casters with an adjustable self-levelling foot making them ideal for a wide range of healthcare environments and treatment procedures.

SPEC SHEET

Standard Specification

  • Safe working load and lifting capacity of 350kg (55 stone)
  • Electric height elevation
  • Motorised back rest from -25 to +85 degrees
  • Purpose made precision bearings on all pivot points
  • Hoist clearance along entire length of couch
  • Excellent height range from 48cm (18”) to 97cm (38”)
  • The power assisted head section incorporates anti-trap design
  • Hand switch fitted as standard
  • 50mm high density flame-retardant foam
  • Antimicrobial contoured upholstery
  • Fully compliant and CE marked
TMB3 - Electric height elevation
dimensions
  • Double foot switch
  • Paper towel holder
  • Phlebotomy arm
  • Breathing hole and plug
  • Cot sides (powder coated, chrome plated or padded)
  • Width: 76cm
  • Height range: 48cm - 97cm
  • Length: 190cm
  • Safe Load: 350kg
  • 3 year warranty on moving components
  • Lifetime warranty on frame
  • EEC classification - MDD93/42/EEC Annex IX Class 1
  • IP rating - IPx4
  • Electrical standard - IEC601 Part 1+ 60601. P (EN)
  • Vinyl flame retardant to CRIB5 (BS7176 inc. foam)
  • Foam to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB5)
