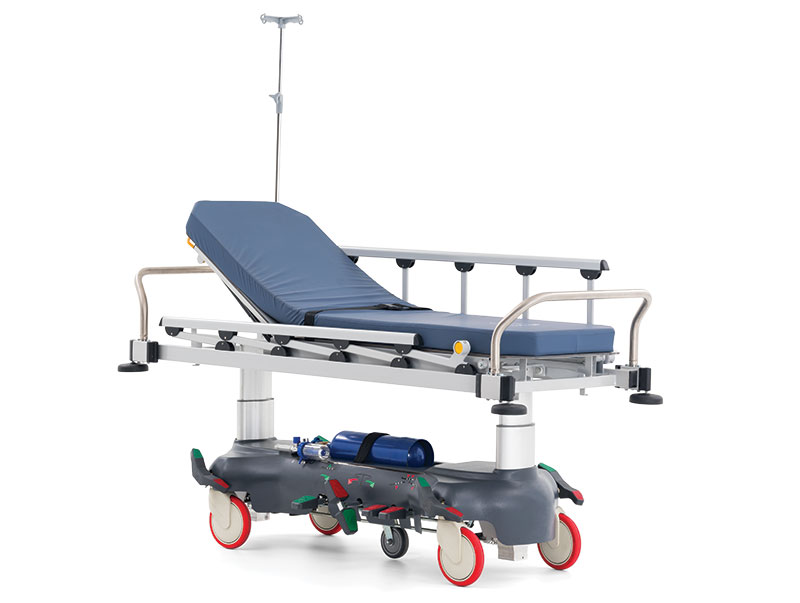

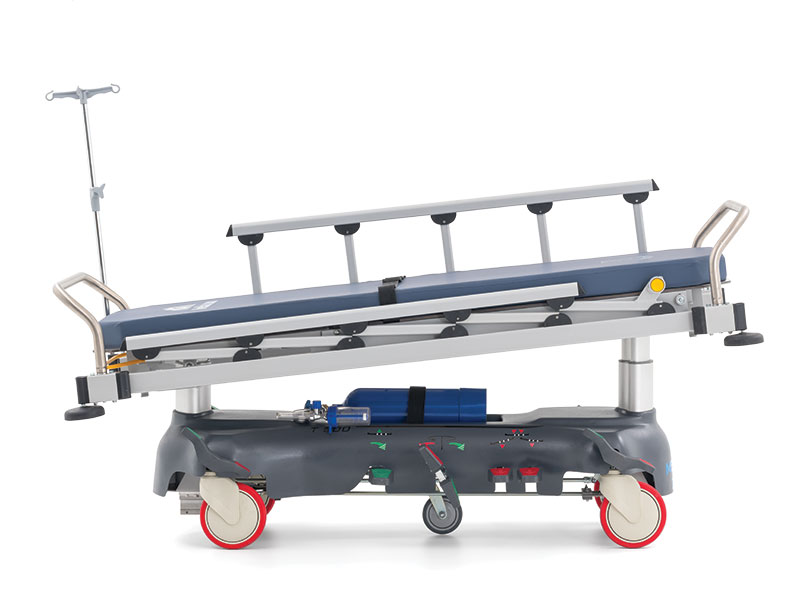

APOLLO

EMERGENCY PATIENT TROLLEY

The Apollo Emergency Patient Trolley is designed for patient treatments and transportation within a wide range of hospital environments. Featuring a 5th wheel steering system the trolley is highly manoeuvrable and has easily accessible pedals to adjust height and Trendelenburg system. With a simple, user-friendly release leaver, the backrest is also entirely adjustable to 90°. X-ray cassette holder under the entire lying surface. A safe working load of 250kg (39 stone) comes as standard.

Standard Specification

  • 2-piece, easy clean HPL lying surface
  • Single button collapsible side rails
  • Stainless steel pushing bar at both ends of stretcher
  • Aluminium telescopic columns
  • ABS plastic bottom part covers
  • Bumpers and holes for accessories in corners
  • Nano ceramic, electrostatic epoxy polyester powder metal parts
  • Backrest angle adjustment by gas spring
  • Height adjustment, Trendelenburg & Reverse Trendelenburg positions achieved by gas springs
  • operated by pedals
  • 360° turning swivel casters equipped with central and directional lock (200mm)
  • 5th caster 125mm (for easy movement of stretcher)
  • Height adjustable IV pole
  • Oxygen bottle holder
  • Patient belt
  • 8cm thick mattress compatible to the lying surface
  • X-ray cassette holder under entire lying surface
PS5 - Emergency Patient Trolley

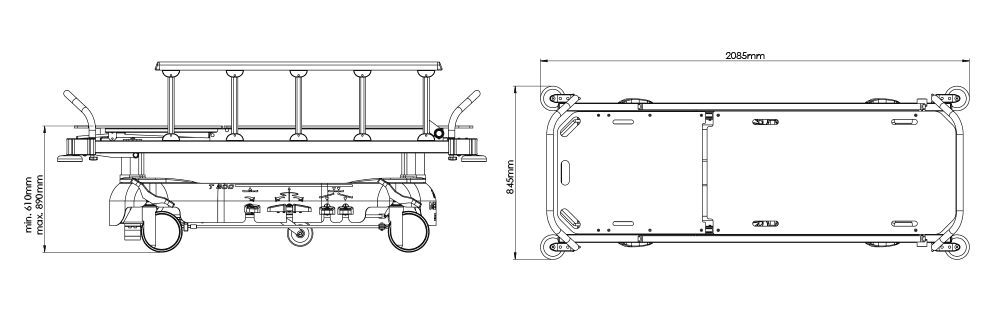

dimensions
  • Defibrillator table
  • Width (Overall): 84.5cm
  • Length (Overall): 208.5cm
  • Height: Minimum 61cm, Maximum 89cm
  • Lying Surface: 193.5 x 60cm
  • Backrest Angle: 90°
  • Trendelenburg: 10° & Reverse Trendelenburg: 10°
  • 2 year warranty on moving components
  • EEC classifi cation - MDD93/42/EEC Annex IX Class 1
  • Vinyl fl ame retardant to CRIB5 (BS7176 inc. foam)
