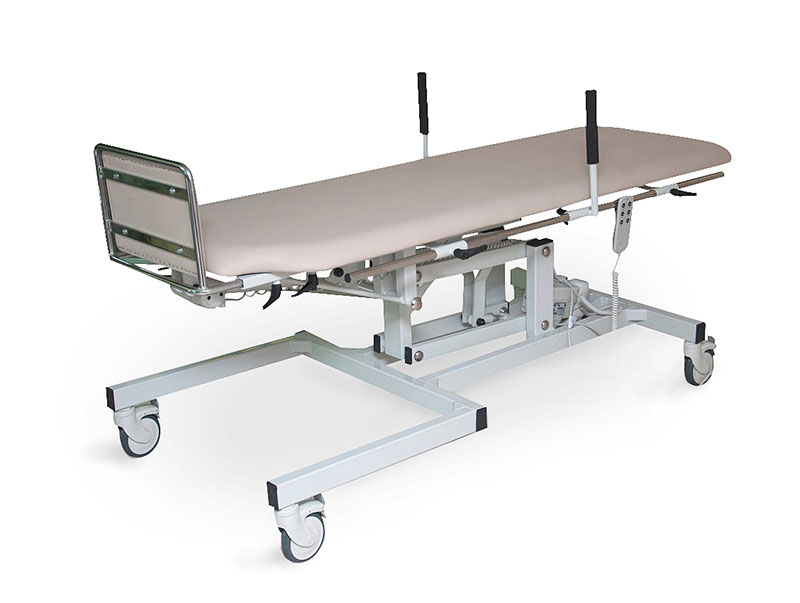

ELECTRIC

TILT TABLE

Designed as a strong, robust platform suitable for a wide range of applications from rehabilitation through to examinations, this tilt table has a four button hand control permitting simultaneous control and adjustment of both height and tilt functions. Lowering to just wheelchair height and featuring electric height and tilt, large toe braked castors, adjustable harnesses and patient grab handles.

SPEC SHEET

Standard Specification

  • Electric height & tilt operation
  • Hardwearing anti-microbial vinyl
  • Safe working load 160kg
  • 100mm toe braked castors
  • Hoist clearance 130mm
  • Swing back patient grab handles
  • Set of patient harnesses
  • Standard patient foot board
  • Fully washable and impermeable, to aid infection control
  • Suitable for cleaning and disinfecting with dilute solutions of Hypochlorite (10,000ppm)
TMTT - Electric Tilt Table
  • Divided Foot Board
  • Battery Back-up
  • Angle Indicator
  • D Cushion
  • Height: 60cm - 105cm approx. (24” - 41”) approx.
  • Length: 185cm (73”) approx.
  • Width: 65cm (26”) approx.

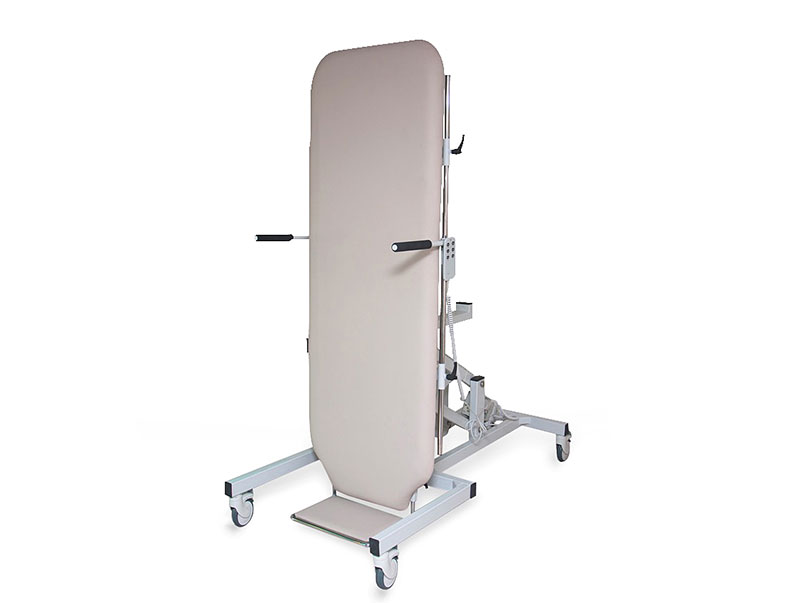

  • Operational parameters: 85° of tilt capabilities from horizontal
  • 3 year warranty on moving components
  • Lifetime warranty on frame
  • Fully compliant and CE marked
  • IP Rating - IPx4
  • EEC Classification - MDD93/42/EEC Annex IX Class 1
  • Electrical Standard - IEC601 Part 1 + 60601. P (EN)
  • Vinyl Flame Retardant To CRIB 5 (BS7176 Including Foam)
  • Foam To BS 5852: Part 2: 1982, Ignition Source 5 (CRIB 5)
