3 SECTION

ELECTRIC & MANUAL

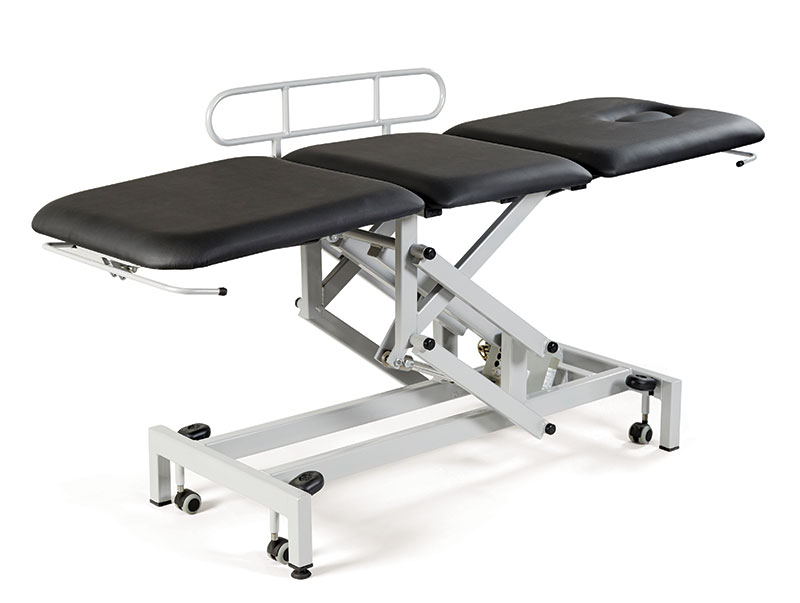

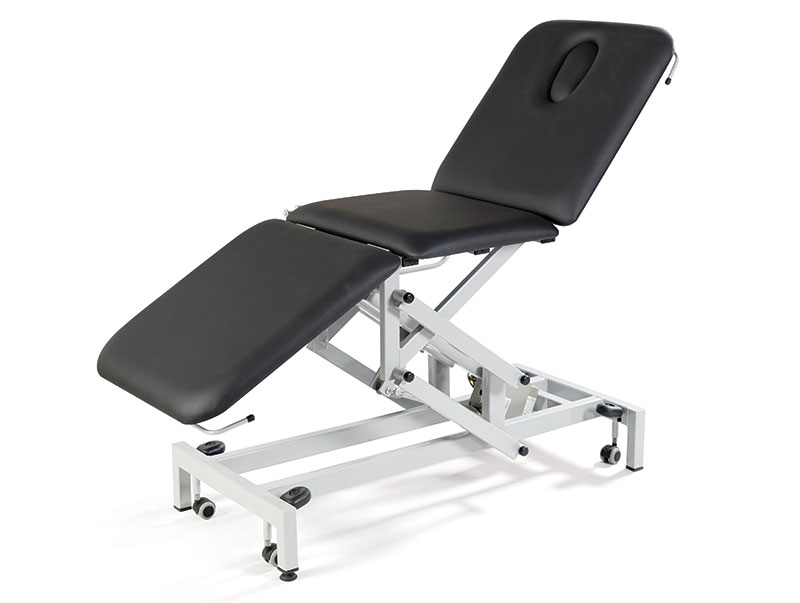

A very strong, robust and aesthetically pleasing treatment couch available with optional breathing hole and removable plug. Our three section plinths feature 55mm retractable positioning castors with an adjustable self-levelling foot making them ideal for a wide range of healthcare environments and treatments procedures.

SPEC SHEET

Standard Specification

  • Safe working load and lifting capacity of 250kg (39 stone)
  • Choice of 2 models - hydraulic or electric height elevation
  • Gas spring assisted back rest from -30 to +85 degrees
  • The power assisted head section incorporates anti-trap design
  • Excellent height range from 48cm to 97cm
  • Purpose made precision bearings on all pivot points
  • Hoist clearance along entire length of couch
  • Hand switch fitted as standard on electric models
  • 50mm high density flame-retardant foam
  • Antimicrobial contoured upholstery
  • Fully compliant and CE marked
TMU3H - Hydraulic height elevation
TMU3E - Electric height elevation

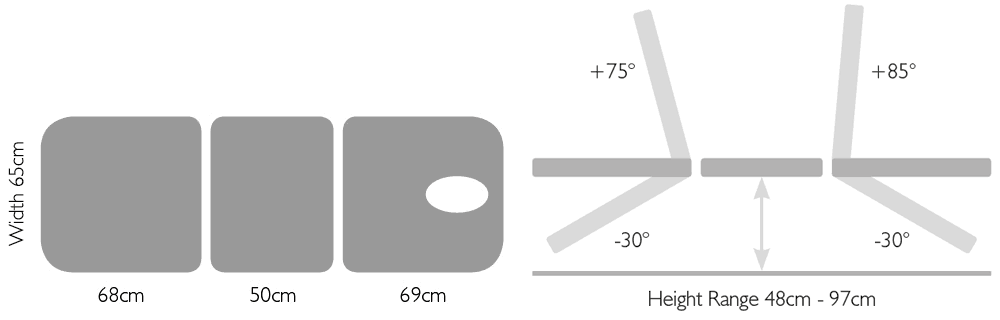

dimensions
  • Motorised backrest
  • Single foot switch operation for electric models
  • Double foot switch operation for electric models
  • Paper towel holder
  • Cot sides (powder coated, chrome plated or padded)
  • Length: 192cm (head 69cm, seat 50cm, foot 68cm)
  • Width: 65cm
  • Safe Load: 250kg
  • Height range: 48cm - 97cm
  • 3 year warranty on moving components
  • Lifetime warranty on frame
  • EEC classification - MDD93/42/EEC Annex IX Class 1
  • IP rating - IPx4
  • Electrical standard - IEC601 Part 1+ 60601. P (EN)
  • Vinyl flame retardant to CRIB5 (BS7176 inc. foam)
  • Foam to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB5)
