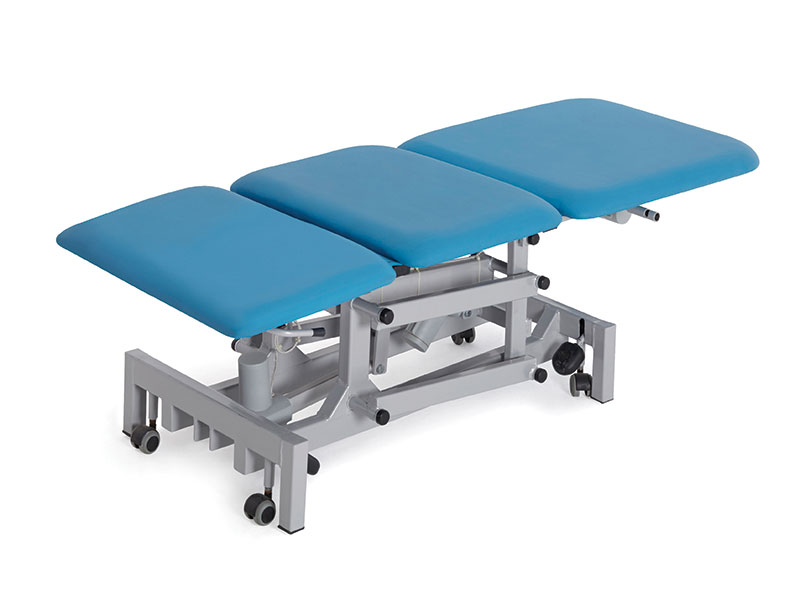

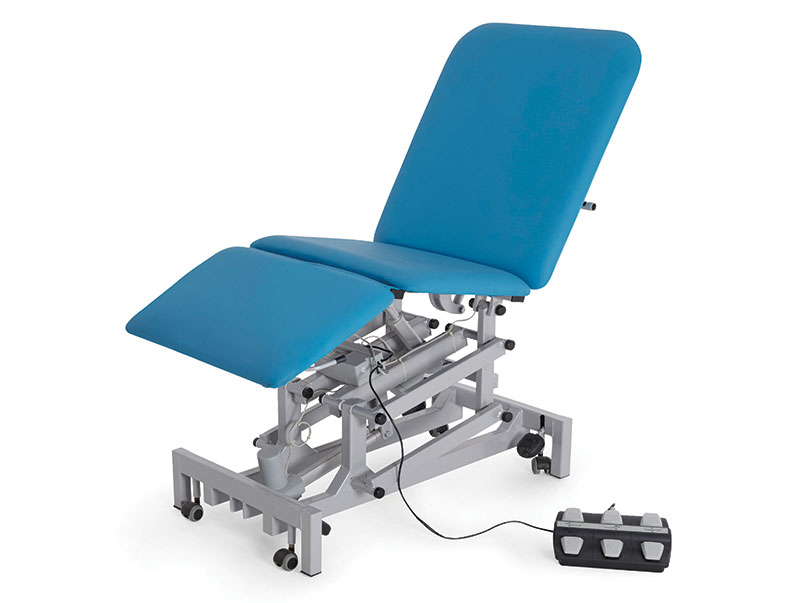

An electric height and motorised three section ultrasound couch featuring a Trendelenburg tilt to allow for patient scanning. The couch features 55mm retractable castors with locking function as well as a 90º drop for patient access.

Standard Specification

  • Electric height, motorised backrest and trendelenburg tilt adjustment
  • Leg section adjustable to -90º, seat tilt from 0º to +25º & backrest adjustment from -15º to +90º
  • Stay level swing back arm rests for easy patient access (arms also removable)
  • Leg length adjustment +15cm (6”) on divided leg model
  • Couch goes horizontal for patient recovery in emergency situations
  • Purpose made precision bearings on all pivot joints
  • Footrest adjustment by gas strut mechanism
  • Adjustable foot for uneven floors
  • Retractable castor wheels with locking function
TMUS - Ultrasound Medical Couch
  • Breathing hole and plug
  • Paper roll holder
  • Double thickness padded upholstery
  • Matching operators chair or stool

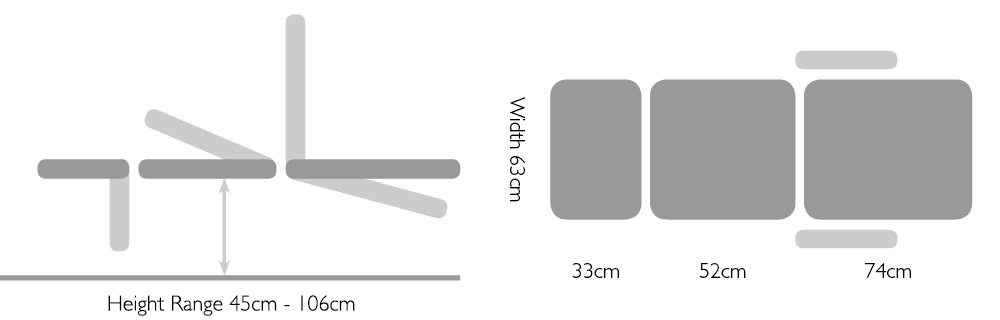

  • Length: 174cm
  • Width: 63cm
  • Height range: 45cm - 106cm
  • Safe Load: 250kg
  • 3 year warranty on moving components
  • Lifetime warranty on frame
  • Fully compliant and CE marked
  • IP rating - IPx4
  • EEC classification - MDD93/42/EEC Annex IX Class 1
  • Electrical standard - IEC601 Part 1+ 60601. P (EN)
  • Vinyl flame retardant to CRIB5 (BS7176 inc. foam)
  • Foam to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB5)
